Choosing the right air compressor for your framing nailer is not as simple as picking the first model you see online. When building a deck, framing a house, or handling big woodwork, the air compressor is the backbone of your nailer’s performance. Without the right match, you’ll face jams, slow nailing, or even damage to your tools. This guide will help you find the best air compressors for framing nailers, explaining what really matters and pointing out top choices for both professionals and DIY enthusiasts. If you want your projects to go smoothly and your tools to last, read on for a practical, detailed look at the top picks and what makes them stand out.
Why The Right Air Compressor Matters For Framing Nailers
Many people think all air compressors are the same, but framing nailers need a specific kind of power. A framing nailer drives large nails into tough materials quickly and repeatedly. To do this, it demands a steady supply of air—both in volume (measured in CFM, cubic feet per minute) and in pressure (measured in PSI, pounds per square inch).
Choosing the wrong compressor can cause several issues:
- Nailer jams: Low air flow or pressure means nails don’t drive fully.
- Slow work: Waiting for the compressor to recover slows down your project.
- Tool damage: Inconsistent pressure can wear out your nailer.
A good air compressor will keep your work fast, smooth, and trouble-free.
Key Factors When Choosing An Air Compressor
Before going into the top picks, let’s look at what matters most when choosing an air compressor for framing nailers:
1. Cfm (cubic Feet Per Minute)
Framing nailers usually need 2. 0 CFM or more at 90 PSI. More CFM means you can fire nails faster or use more than one nailer at a time.
2. Tank Size
A bigger tank (4–6 gallons or more) stores more air, meaning the compressor runs less often. This is important for big projects.
3. Psi (pounds Per Square Inch)
Most framing nailers run best at 90–120 PSI. The compressor should easily reach and maintain this.
4. Portability
If you move around a job site, weight and handle design matter. Some compressors are light and easy to carry; others are heavy but more powerful.
5. Noise Level
Some compressors are very loud (80+ dB), while others are designed to be quieter. This matters if you work indoors or in noise-sensitive areas.
6. Duty Cycle And Recovery Time
A high duty cycle means the compressor can run for longer periods. Fast recovery time means less waiting between nailing bursts.
7. Oil-free Vs. Oil-lubricated
Oil-free compressors need less maintenance and are more portable, but sometimes less durable for heavy use.
Two insights beginners often miss:
- Air hose length and quality: A long, narrow, or poor-quality hose can lower the pressure at your nailer. Always use a good hose, and keep it as short as possible.
- Electrical requirements: Some compressors need more power than a standard outlet can provide. Check your job site’s electrical capacity before buying.
Credit: www.youtube.com
Top Air Compressors For Framing Nailers
Let’s look at the best air compressors for framing nailers, with details on what makes each one a good choice. These options cover a range of needs, from home DIY to heavy-duty professional use.
1. California Air Tools 8010 Steel Tank Air Compressor
This model is famous for its very low noise—only 60 decibels—making it a great choice for indoor work or for those who dislike loud machines. The California Air Tools 8010 has an 8-gallon steel tank, giving you plenty of air storage. It produces 3.0 CFM at 90 PSI, so it can easily keep up with most framing nailers.
One unique feature is the oil-free pump, which means less maintenance and no risk of oil stains on your work. At 48 pounds, it’s not the lightest, but it has wheels and a handle for easy movement. It works well for both professionals and serious DIYers who want power without the noise.
2. Bostitch Btfp02012 6-gallon Pancake Air Compressor
The Bostitch BTFP02012 is a popular choice for framing nailers because it balances size, power, and portability. Its 6-gallon tank and 2.6 SCFM at 90 PSI output are enough for one framing nailer running steadily. The pancake design makes it stable, and at only 29 pounds, it’s easy to carry.
This compressor is oil-free and requires almost no maintenance. It reaches a maximum of 150 PSI, so you get more nails per tank fill. It’s a favorite among home builders and remodelers who need something light and reliable.

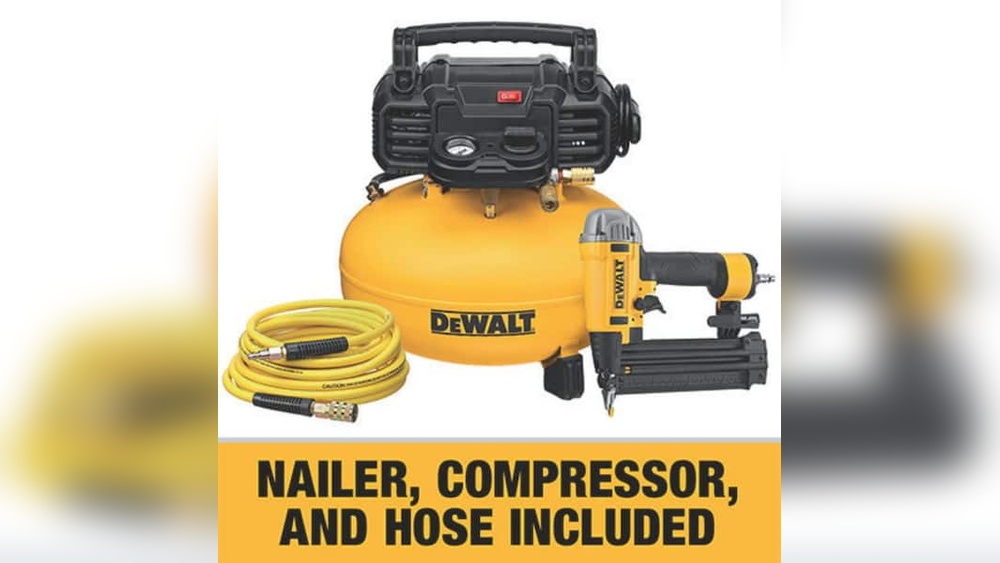

3. Dewalt Dwfp55126 6-gallon Pancake Compressor
DEWALT is well-known for tough tools, and the DWFP55126 is no exception. Like the Bostitch, it has a 6-gallon tank and an output of 2.6 SCFM at 90 PSI. What makes it stand out is its high-flow regulator, which helps maintain consistent pressure even as the tank empties.
At 30 pounds, it’s portable, and the handle is comfortable for carrying. It is also oil-free, which means less mess and easier maintenance. This model is built to start easily even in cold weather, which is a plus for outdoor construction sites.
4. Makita Mac2400 Big Bore 2.5 Hp Air Compressor
If you want something more powerful for heavy, all-day framing jobs, the Makita MAC2400 is a top pick. It uses a 4.2-gallon twin stacked tank and a 2.5 HP motor. The Big Bore pump design allows it to deliver 4.2 CFM at 90 PSI, which is enough for two framing nailers at once.
This compressor is oil-lubricated, so it runs cooler and lasts longer under tough use. However, it needs regular oil checks and changes. At 77 pounds, it’s heavy, but the roll-cage design protects it on busy job sites. It’s a favorite among professionals who need nonstop power.
5. Porter-cable C2002 6-gallon Pancake Compressor
The PORTER-CABLE C2002 is another 6-gallon, oil-free model, similar to the Bostitch and DEWALT. It provides 2.6 SCFM at 90 PSI and a maximum of 150 PSI. Its pancake shape is stable and easy to store, while its 34-pound weight is manageable for most people.
One small advantage is its water drain valve, which is easy to access and use. This makes it simple to keep the tank dry and rust-free. It’s a solid choice for homeowners and light construction work.
6. Metabo Hpt Ec710s 6-gallon Pancake Compressor
Metabo HPT (formerly Hitachi) is known for high-quality nailers, and their EC710S compressor matches that reputation. It has a 6-gallon tank, 2.8 CFM at 90 PSI, and a maximum of 150 PSI. It’s oil-free and designed for quick recovery, so you don’t lose time waiting for pressure to build.
At 36. 5 pounds, it’s not the lightest, but the handle is sturdy. What stands out is its quiet operation compared to other pancake compressors. It’s a smart match for Metabo (Hitachi) framing nailers, but works well with all brands.
7. Rolair Jc10 Plus 2.5 Gallon Air Compressor
If you want a truly quiet compressor for indoor or sensitive workspaces, the Rolair JC10 Plus is hard to beat. It produces only 60 decibels of noise and delivers 2.4 CFM at 90 PSI. The 2.5-gallon tank is smaller than others on this list, but it recovers quickly.
Weighing 42. 9 pounds, it’s a bit heavy for its size, but the build quality is excellent. This model is best for lighter framing jobs or for those who value silence above all else.
8. Industrial Air Il1682066.mn 20-gallon Belt Driven Air Compressor
For big jobs or workshops where power is more important than portability, the Industrial Air IL1682066.MN offers a 20-gallon tank and 6.2 CFM at 90 PSI. This belt-driven, oil-lubricated compressor is designed for heavy, all-day use.
At 159 pounds, it’s not something you carry around, but it has wheels for moving short distances. It can easily run two or more framing nailers without slowing down. This is a good choice for contractors or those building large structures.
9. Senco Pc1010 1-gallon Compressor
For those who need a small, super-portable compressor for punch-list framing jobs or repairs, the Senco PC1010 is a good option. It has a 1-gallon tank and delivers 0.7 CFM at 90 PSI—not enough for full-speed framing, but perfect for occasional use.
This model weighs only 20 pounds and is easy to carry up ladders or into tight spaces. It’s oil-free and very quiet (68 decibels). It’s not for big framing jobs, but great for quick fixes.
10. Campbell Hausfeld Dc080500 Quiet Air Compressor
The Campbell Hausfeld DC080500 is designed for quiet operation at 68 decibels and has an 8-gallon tank. It produces 2.4 CFM at 90 PSI, which is enough for most single framing nailers.
At 67 pounds, it’s not ultralight, but the wheels make it easier to move. The oil-free pump means less mess and maintenance. It’s a smart choice for workshops or garages where noise is a concern.
11. Northstar Portable Electric Air Compressor 8-gallon
The NorthStar 8-Gallon compressor is a heavy-duty, oil-lubricated model with 4.0 CFM at 90 PSI. It is built for long life, with a cast iron pump that runs cooler and lasts longer than most oil-free models.
Weighing 87 pounds, it’s best for those who want power and do not need to move the compressor often. Its high CFM means you can keep nailing without waiting for the tank to refill.
12. Ridgid 4.5-gallon Portable Electric Quiet Compressor
RIDGID’s 4.5-Gallon Quiet Compressor offers 3.0 CFM at 90 PSI and is designed for portability. Its noise level is only 77 decibels, which is less than most competitors in its class.
At 61 pounds, it’s manageable with a well-designed handle. The twin-stack tank gives more air storage in a compact shape. This model is great for remodeling jobs where both power and lower noise are important.
13. Craftsman Cmec6150k 6-gallon Pancake Air Compressor
Craftsman’s CMEC6150K is a 6-gallon, oil-free compressor with 2.6 SCFM at 90 PSI. It’s very similar to Bostitch and DEWALT models, with a stable design and a max of 150 PSI.
It weighs 32. 5 pounds, making it easy to move around a job site. This model is a favorite among DIYers for its price and reliability, and it often comes as a kit with hoses and accessories.
14. Eagle Silent Series Ea-6500 6.5-gallon Air Compressor
The Eagle Silent Series EA-6500 is known for very quiet operation—only 53 decibels. It features a 6.5-gallon tank and delivers 2.5 CFM at 90 PSI.
At 90 pounds, it’s heavier than most pancake compressors, but the low noise and solid build make it a good fit for indoor or residential work.
15. Stealth Saq-1413 4.5-gallon Ultra Quiet Compressor
The Stealth SAQ-1413 is part of the new generation of ultra-quiet compressors, producing just 65 decibels. It has a 4.5-gallon tank and provides 3.0 CFM at 90 PSI.
At 61 pounds, it balances portability and power. The oil-free pump means it’s easy to maintain, and the quick recovery helps for continuous nailing.
—
To help you compare, here’s a quick look at the core specs of the top models:
| Model | CFM @ 90 PSI | Tank Size | Noise (dB) | Weight (lbs) | Oil-Free |
|---|---|---|---|---|---|
| California Air Tools 8010 | 3.0 | 8 gal | 60 | 48 | Yes |
| Bostitch BTFP02012 | 2.6 | 6 gal | 78.5 | 29 | Yes |
| DEWALT DWFP55126 | 2.6 | 6 gal | 75.5 | 30 | Yes |
| Makita MAC2400 | 4.2 | 4.2 gal | 79 | 77 | No |
| PORTER-CABLE C2002 | 2.6 | 6 gal | 82 | 34 | Yes |
| Metabo HPT EC710S | 2.8 | 6 gal | 73 | 36.5 | Yes |
| Rolair JC10 Plus | 2.4 | 2.5 gal | 60 | 42.9 | Yes |
| Industrial Air IL1682066.MN | 6.2 | 20 gal | 80 | 159 | No |
| Senco PC1010 | 0.7 | 1 gal | 68 | 20 | Yes |
| Campbell Hausfeld DC080500 | 2.4 | 8 gal | 68 | 67 | Yes |
| NorthStar 8-Gallon | 4.0 | 8 gal | 80 | 87 | No |
| RIDGID 4.5-Gallon | 3.0 | 4.5 gal | 77 | 61 | Yes |
| Craftsman CMEC6150K | 2.6 | 6 gal | 78.5 | 32.5 | Yes |
| Eagle EA-6500 | 2.5 | 6.5 gal | 53 | 90 | Yes |
| Stealth SAQ-1413 | 3.0 | 4.5 gal | 65 | 61 | Yes |
How To Match A Compressor To Your Framing Nailer
Framing nailers are not all the same. Most use about 2. 0–2. 5 CFM at 90 PSI when firing nails quickly. However, if you use two nailers at once, you need to double the CFM. Always check the specs of your nailer before buying a compressor.
Here’s a simple match-up:
| Compressor CFM @ 90 PSI | Best For | Example Models |
|---|---|---|
| 0.7 – 1.5 | Light duty, repairs | Senco PC1010 |
| 2.0 – 3.0 | Single framing nailer | Bostitch BTFP02012, DEWALT DWFP55126 |
| 3.5 – 6.5 | Multiple nailers, heavy framing | Makita MAC2400, Industrial Air IL1682066.MN |
Credit: www.homedepot.com
Common Buyer Mistakes
Many first-time buyers make simple errors that reduce performance or waste money:
1. Choosing Too Small A Tank
A small tank means more frequent stops as the compressor refills. For big jobs, this slows you down and can wear out the compressor.
2. Ignoring Cfm Needs
CFM is more important than just PSI. If the CFM is too low, even high pressure won’t help.
3. Overlooking Hose Quality
A poor hose can cause pressure drops, making your nailer work poorly even with a good compressor.
4. Not Considering Noise
Loud compressors can be a big problem in homes or quiet neighborhoods. Look for noise ratings if this matters to you.
5. Forgetting About Portability
A heavy compressor is hard to move. Think about where and how you’ll use it.
6. Not Checking Electrical Needs
Some compressors trip breakers or can’t be used with standard outlets. Always check before buying.
Practical Tips For Compressor Longevity
To get the most from your investment, follow these tips:
- Drain the tank after every use: Moisture causes rust inside the tank. Always drain it to prevent damage.
- Check the filter and oil (if oil-lubricated): Clean or replace filters and check oil levels to keep the compressor running smoothly.
- Use the right extension cords: If you must use an extension cord, use a heavy-duty, short cord to avoid voltage drops.
- Keep the compressor clean: Dust and debris can block air intakes and reduce cooling.
- Store in a dry place: Water and cold can damage pumps and tanks.
Many beginners overlook the importance of a good regulator and water separator. These simple add-ons can prevent water in your air line (which can ruin wood or tools) and keep pressure steady.
Credit: www.lowes.com
When To Choose A Big Compressor
Some users wonder if they should buy a big, heavy compressor “just in case.” In reality, you should match the compressor to your main use:
- If you only frame a few walls a year, a 6-gallon, 2.6 CFM compressor is fine.
- If you run two framing nailers all day, a 20-gallon, 6.0+ CFM model is best.
- For indoor or small repairs, a quiet, portable model is best—even if the tank is small.
For more information on air compressor basics, visit the Wikipedia Air Compressor page.
Frequently Asked Questions
What Size Air Compressor Do I Need For A Framing Nailer?
Most framing nailers need at least 2.0 CFM at 90 PSI. If you plan to use two nailers at once, you should look for a compressor with at least 4.0 CFM at 90 PSI. The tank size should be at least 4–6 gallons for steady work.
Can I Use A Small Pancake Compressor For Framing?
Yes, a 6-gallon pancake compressor with at least 2.6 SCFM at 90 PSI will work for most single framing nailers. However, for very fast work or multiple nailers, a larger compressor is better.
Is Oil-free Or Oil-lubricated Better For Framing Nailers?
Oil-free compressors are easier to maintain and lighter, making them good for most framing nailer jobs. Oil-lubricated compressors are heavier but last longer and can handle bigger, nonstop jobs. Choose based on your main use.
How Important Is Noise Level For Air Compressors?
Noise level matters if you work indoors, in residential areas, or for long periods. Compressors under 70 decibels are considered quiet. Loud compressors (80+ dB) can be uncomfortable without ear protection.
Can I Run Other Tools With The Same Compressor?
Yes, but check the CFM requirements of each tool. Many compressors that work for framing nailers can also run finish nailers, staplers, or airbrushes. For bigger tools like sanders or impact wrenches, you’ll need a much higher CFM.
—
Finding the best air compressor for your framing nailer means matching the tool’s needs with the compressor’s real-world performance. Whether you choose a quiet, portable model for repairs or a large, powerful compressor for heavy framing, the right choice will save you time, frustration, and money.
Consider your work style, space, and noise needs before you buy. With this guide, you can confidently pick a compressor that will help you frame faster and better, job after job.
